超聲波治療儀
Ultrasound Physiotherapy Machine

在組織修復上超聲波可以在幾個級別起作用;在癒合的早期階段,超聲波可減少水腫, 引發肥大細胞脫顆粒(發放細胞互動化學訊息),超聲波可增加血流量,繼而增加向該區域輸送氧氣和巨噬細胞。 在癒合的後期階段, 超聲波可能會刺激膠原蛋白沉積和重塑。膠原蛋白的重塑發生在傷口癒合的後期階段,主要負責傷口的最終強度和完整性。

Model-848

Frequencies of 1 MHz
Ultrasound power 3 W/cm² (continuous or pulsed)
Pulse repetition frequency of 100 Hz
醫護級超聲波治療儀(外借服務)
租金: HKD 600 (3天)
租用按金: HKD 4000 (如有破損原價收取)
翌日: 19:00前交回
Manual click here

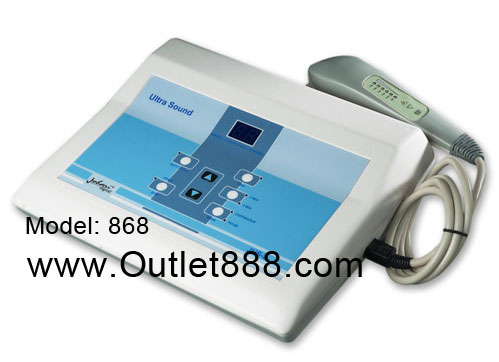

Model-868

Frequency: 1 & 3 Mhz
Pulse & Continuous mode
Pulse repetition frequency of 100 Hz
Intensity: 3W/cm2 (Pulse 100Hz)
Duty cycle: 10,20,50%
Horn size: 3.5cm
Water resistance horn
Price: HKD6000 (for 1&3 Mhz dual frequency)
Price: HKD4300 (for 1 Mhz single frequency)
Made in India
Manual 1&3 Mhz (dual frequency)click here
Manual 1 Mhz (single frequency)click here
Manual click here


Model-2782

Frequency: 1 or 3.3Mhz
Pulse ; Continuous mode
Pulsed intensity: 10%,20%,50% of 3W/cm2
Continuous intensity: 100% of 2W/cm2
Intensity: 3W/cm2 (Pulsed 100hz)
Duty cycle: 10,20,50%
Horn size: 1/2/5/10 (cm2)
Price: HKD16000
Made in USA
Manual click here

Features:
Fully functional 1 and 3.3 MHz frequencies
Ten user-defined memory positions for User Protocols
Pulsed and continuous therapy operation (10%, 20%, 50% and 100%)
Ergonomically designed sound head applicators in variety of sizes
(1 cm² / 2 cm² / 5 cm² / 10 cm²)
Sound heads are watertight for use in underwater therapy
All Sound Head Applicators are interchangeable due to Electronic Signature™ residing on all transducers
Head-warming feature on all Sound Head Applicators
Unit uniquely designed for tabletop, wall mount, therapy cart or mobile use
110V or battery powered option (battery sold separetely)
Optional Therapy Cart (sold separetely) integrates with the unit to maximize storage of clinical supplies
Two-year warranty

Technical Specs:
Mains Power: 100 - 240 VAC~50/60 Hz. 1.0 A
Product Weight: 5 lb (2.3 kg)
Shipping Weight: 9 lb (4 kg)
Dimensions: 12.9"L x 11.3"W x 6.4"H (32.8 cm x 28.8 cm x 16.3 cm)
Electrical Safety Class: Class 1, Type B Safety Tests: UL/IEC/EN 60601-1, IEC/EN 60601-1-2, IEC 60601-2-5

What does it come with?
2782 Ultrasound Unit
27383 5cm Ultrasound Applicator
4248 Conductor Transmission Gel 8.5 oz (250 ml) Bottle




Model-8744 8744

Combo therapy
(Ultrasound+TENS+IFC+EMS+Russia)
Dual Ultrasound Frequency: 1 and 3Mhz
Pulse / Continuous mode
Intensity: Max.3W/cm2 (Pulsed 100hz)
Duty cycle: 10~100% (10% STEP INCREMENT)
Horn size: 5 (cm2)
Made in USA
Manual 8744 click here
Price: HKD14000




本公司提供之本頁型號並未具有專科醫療認證之醫療器械,購買前請先參考醫生意見
***(本公司並非醫療機構,不能提供醫療咨詢)***

Ultrasound therapy Key Function Highlights
* Recovery of Neuromuscular Disorders 消除肌腱神經性紊亂
* Improves Hamstring flexibility 增加膕繩肌腱活動柔性
* Healing for Musculoskeletal Injuries 修復受傷肌腱
* Deduces resolution of Edema 減少腫脹程度
* Softening of Scar Tissue 軟化疤痕組織

Tendon 肌腱 (肌肉與骨骼連接之半軟組織)
Ligament 韌帶 (骨骼與骨骼之連接半硬組織)
Sprain 扭傷, 拉傷 (一般指肌腱、韌帶)
Strain 勞損 (一般指肌肉)

適用於軟組織受傷症狀

足底筋膜痛、腳板痛、腳踭痛、風濕關節痛、肩周痛、手碗痛、手臂痛、膝痛、扭傷、拉傷、撞傷 (撞瘀) 、運動創傷、關節痛、腰椎痛、減輕肌肉疼痛、僵硬、痙攣症狀
(網球手 五十肩 肩周炎 足底筋膜炎 關節炎 腕管綜合症...等 疾病及病理情況字句不宜作宣傳用,請諮詢醫生/護理員意見)
(Tennis Elbow, Carpal Tunnel Syndrome, Arthritis, Bursitis, Tendonitis, Plantar, Fasciitis...etc those terms of disease do not use for advertising, please consult doctor. )


超聲波物理治療超過50年歷史, 絕對安全. 但仍需按正確使用手法並遵守以下規則:

勿應用於內臟器官上如: 胃/肝/肺/脾/腸/心/腎/甲狀腺
勿應用於孕婦的盤骨/下腹/後腰底部
勿應用於超聲敏感器官上如: 眼/耳/卵巢/睪丸/腦/脊椎神經
勿應用於黏膜如: 口/鼻/直腸/肛門/陰道
勿應用於患有血管疾病如: 血友病/靜脈炎/血栓
勿應用於患有: 脊柱裂/骨炎/ 骨裂 (LIPUS 除外)
勿應用於患有癌症部位
勿應用於患有失去感覺的病症
勿應用於16歲以下人士而未經治療師指導下使用


本公司提供之本頁型號並未具有專科醫療認證之醫療器械,購買前請先參考醫生意見
***(本公司並非醫療機構,不能提供醫療咨詢)***
